| ITEM | UNIT | G-630 | ||
| Travel | X-Axis Travel | mm | 650 | |
| Y-Axis Travel | mm | 650 | ||
| Z-Axis Travel | mm | 500 | ||
| Distance from spindle nose to table surface | mm | 100~600 | ||
| Worktable Dimensions | mm | Ø 630 | ||
| Worktable Load（level） | kg | 850 | ||
| Worktable Load（tilt） | kg | 850 | ||
| Motor | X axes motor (Siemens) | kw | 3.55 | |
| Y axes motor (Siemens) | kw | 3.55 | ||
| Z axes motor (Siemens) | kw | 5.5 | ||
| Feed rate | X-Axis Rapid Feed | m/min | 48 | |
| Y-Axis Rapid Feed | m/min | 48 | ||
| Z-Axis Rapid Feed | m/min | 48 | ||
| ( X / Y / Z )-axis Cutting feed rate | mm/min | 1~10000 | ||

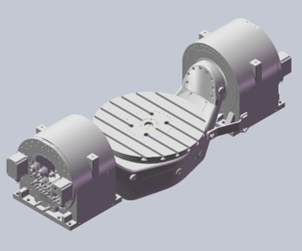

| Rotary axis | A-axis | A-axis Rotation Angle | deg | +30 ~ -130 |
| A-axis Max. Speed | rpm/min | 50 | ||
| Rated torque | N.m | 1290*2 | ||
| Maximum torque | N.m | 2400*2 | ||
| Clamping torque | N.m | 2×2400 | ||
| C-axis | C-axis Rotation Angle | deg | 360° | |
| C-axis Max. Speed | rpm/min | 100 | ||
| Rated torque | N.m | 600 | ||
| Maximum torque | N.m | 1000 | ||
| Clamping torque | N.m | 2400 | ||
| Spindle | Spindle Transmission Type | HSK-A63 | ||
| Spindle Speed (max.) | rpm | 16000 | ||
| Spindle Power | kw | 30 | ||
| Max. Torque | N.m | 72/85N.m | ||
| Tool Handle Spec. | Type | HSK-A63 | ||
| Precision | X-axis Positioning (VDI3441) | mm | 0.008 | |
| Y-axis Positioning (VDI3441) | mm | 0.008 | ||
| Z-axis Positioning (VDI3441) | mm | 0.008 | ||
| A-axis Positioning | sec | 10 | ||
| C-axis Positioning | sec | 10 | ||
| X-axis Repeatability (VDI3441) | mm | 0.005 | ||
| Y-axis Repeatability (VDI3441) | mm | 0.005 | ||
| Z-axis Repeatability (VDI3441) | mm | 0.005 | ||
| A/C-axis Positioning | sec | 5 | ||

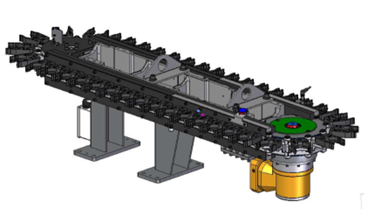

| A.T.C | Magazine type | Disc | ||
| Tool capacity | pcs | 40 | ||
| Max. Tool Diameter | mm | Ø75 | ||
| Without adjacent tool | mm | Ø125 | ||
| Max. Tool Length | mm | 350 | ||
| Max. Tool Weight | kg | 8 | ||
| system requirements | Controller | SIEMENS ONE | ||
| Power demand | kva | 100 | ||
| Air pressure demand | kgf | 6~8 | ||
| Water tank capacity | L | 1000 | ||
| Other | Machine Occupancy (L×W) | mm | 2650×4559 | |
| Machine height | mm | 3,210 | ||
| Machine Weight | kg | 11500 | ||
