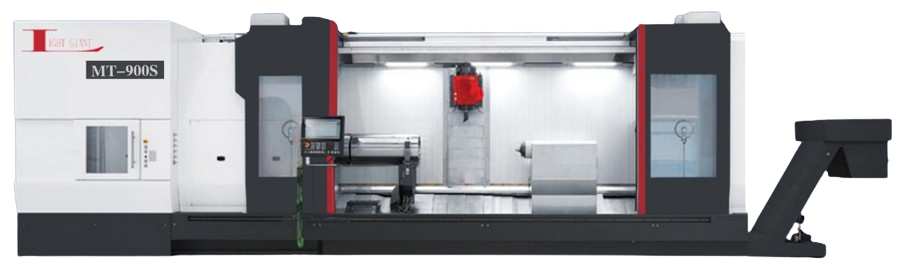

Unit | MT-900S | |
| Capacity unit | Max.swing diameter | mm | Ø950 |
| Max.turning diameter | mm | Ø900 | |
| Max.turning length | mm | 3100 | |
| Draw.bar dia | mm | Ø116 | |
| Travel | X-axis travel (Up and down direction) | mm | 800 |
| Y-axis travel (Front to back direction) | mm | 500（±250） | |
| Z-axis travel | mm | 3100 | |
| W-axis travel (Auxiliary spindle) | mm | 2162 | |
| B-axis swiveling | mm | ±120° | |
| Rapid Traverse Rate | X-axis traverse | m/min | 30 |
| Y-axis traverse | m/min | 30 | |
| Z-axis traverse | m/min | 30 | |
| W-axis traverse | m/min | 15 | |
| Main spindle | Spindle nose type | ASA | A2-11 |
| Chuck size | inch | 15 | |
| Max. speed | rpm | 2000 | |
| Spindle hole | mm | Ø 130 | |
| Clamping range of outer diameter | mm | Ø49~405 | |
| Cs-axis | deg | 0.001 | |
| spindle torque | N.m | 2613/7244 | |
| Headstock type | BF Gear Box | ||
| Spindle motor power (Rating) | kw | 28 | |
| Sub spindle | Spindle nose type | ASA | A2-11 |
| Chuck size | inch | 15 | |
| Max. speed | rpm | 2000 | |
| Spindle hole | mm | Ø 130 | |
| Clamping range of outer diameter | mm | Ø49~405 | |
| Cs-axis | deg | 0.001 | |
| spindle torque | N.m | 2613/7244 | |
| Headstock type | BF Gear | ||
| Spindle motor power (Rating) | kw | 28 | |
| Tuming Mill Compler Spindle | Max. spindle speed | rpm | 9000 |
| Milling spindle torque | N.m | 25 | |
| Spindle motor power(rating) | kw | 60 | |
| Tool shank type | HSK-T100 / (Capto C8) | ||
| Milling spindle / B-axis | |||
| Max. speed of B-axis | rpm | 50 | |
| B-axis locking torque | N.m | 13400 | |
| Smallest indexation | deg | 3 | |
| Least indexing degree | deg | 0.001 | |
| ATC Tool Magazine | Magazine capacity | Pcs | 40 |
| Tool change time (knife to knife) | sec | 5(T-T) | |
| Max. tool diameter | nn | Ø 125 / Ø 200 | |
| Max. tool length | mm | 600 | |
| Max. tool weight | kg | 25 | |
| Feed motor | X-axis motor | kw | 7.7 |
| X-axis torque | N.m | 48N.m | |
| Y-axis motor | kw | 5.2 | |
| Y-axis torque | N.m | 36N.m | |
| Z-axis motor | kw | 11 | |
| Z-axis torque | N.m | 70N.m | |
| W-axis motor（Auxiliary spindle） | kw | 4.7 | |
| W-axis torque | N.m | 28N.m | |
| Positioning Accuracy | X-axis | mm | 0.006 |
| Y-axis | mm | 0.006 | |
| Z-axis | mm | 0.008 | |
| W-axis（Auxiliary spindle） | mm | 0.008 | |
| B-axis | ″ | ±5 | |
| C-axis1 | ″ | ±8 | |
| C axis2 | ″ | ±8 | |
| Positioning Repeatability | X-axis | mm | 0.004 |
| Y-axis | mm | 0.004 | |
| Z-axis | mm | 0.006 | |
| W-axis（Auxiliary spindle） | mm | 0.006 | |
| Axis B | ″ | ±2 | |
| C-axis1 | ″ | ±4 | |
| C axis2 | ″ | ±4 | |
| General | Power capacity | KVA | 150 |
| Air pressure required(Min) | Kg/cm2 | 6 | |
| Water tank capacity | Liter | 1400 | |
| Weight (depending on the type and accessories) | kg | 38800 | |
| Machine Dimensions ( L×W×H ) | mm | 8750×3500×3385 | |
| NC controller | Siemens ONE | ||
